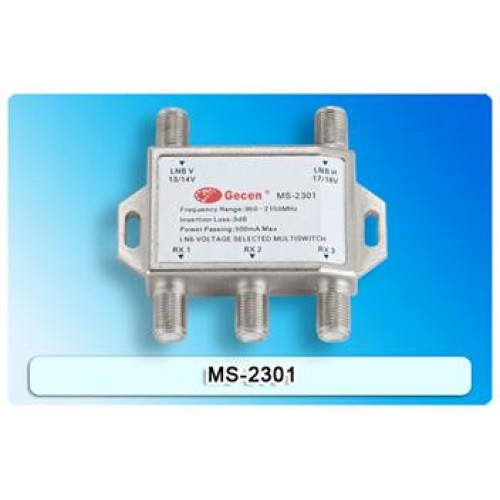

GECEN 2X3 SATELLITE MULTISWITCH (13/18V)

Features:

• Zinc die-cast housing, nickel-plated
• Excellent quality component
• Professional circuit design and low loss
• 13/18V supplied by satellite receiver through coaxial cable to switch corresponding port
• Capable of connecting two SATV signals simultaneously, which is switched through 13/18V
• Distributed into three subscribers to use simultaneously and no mutual interference
• Applicable to multi-satellite and multi-receiver usage

MS-2301 Specifications:

• Frequency Range 950-2150(MHz)
• Normal Working Voltage 12-20(V)
• Insertion Loss 5(dB)
• DC Power Consumption 15(mA)
• DC Max Power Passing 500(mA)
• Isolation 25(dB)
• Return Loss 10(dB)
• Impedance(all ports) 75
• Switching Voltage : 13/18V

Connectors:"F" type female
