Gecen 2x4 Satellite Multiswitch (13/18V)

Gecen 2x4 Satellite Multiswitch (13/18V)
Brand: GECEN
Product Code: MS-2401
Availability: In Stock
Price: $43.01 $20.00
Ex Tax: $17.39
Qty:     - OR -   Add to Wish List
Add to Compare

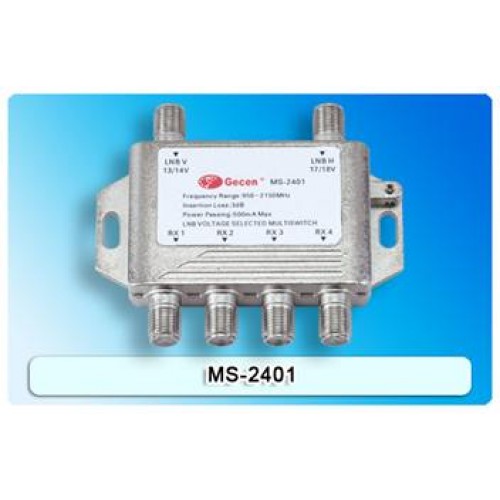

Gecen 2X4 Satellite Multiswitch (13/18V)

Features:

  • Zinc die-cast housing, nickel-plated
  • Excellent quality component
  • Professional circuit design and low loss
  • 13/18V supplied by satellite receiver through coaxial cable to switch corresponding port
  • Capable of connecting two SATV signals simultaneously, which is switched through 13/18V
  • Distributed into four subscribers to use simultaneously and no mutual interference
  • Applicable to multi-satellite and multi-receiver usage



MS-2401 Specifications:

  • Frequency Range 950-2150(MHz)
  • Normal Working Voltage 12-20(V)
  • Insertion Loss 5(dB)
  • DC Power Consumption 15(mA)
  • DC Max Power Passing 500(mA)
  • Isolation 25(dB)
  • Return Loss 10(dB)
  • Impedance(all ports) 75
  • Switching Voltage : 13/18V

Connectors: "F" type female
