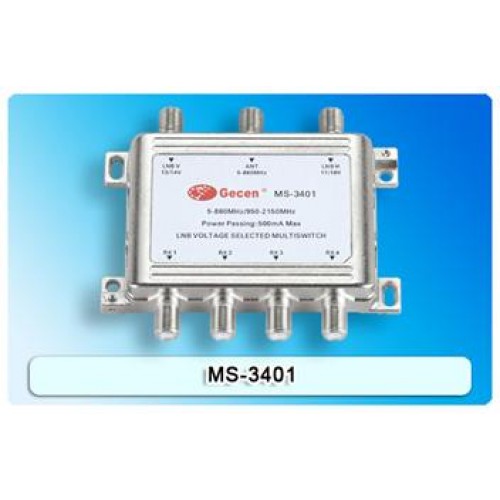

Gecen 3X4 Satellite Multiswitch (13/18V)

Features:

• Zinc die-cast housing, nickel-plated
• Excellent quality component
• Professional circuit design and low loss
• 13/18V supplied by satellite receiver through coaxial cable to switch corresponding port
• Capable of connecting two SATV signals, one ANT signal or FM broadcast simultaneously
• Capable of connecting two SATV signals simultaneously, which is switched through 13/18V
• Distributed into four subscribers to use simultaneously and no mutual interference
• Applicable to multi-satellite and multi- receiver usage


MS-3401 Specifications:

• Frequency Range ANT 5-860 (MHz) Return Loss ANT Inputs 12(dB)
• Frequency Range SAT 950-2150 (MHz) Return Loss Outputs 8(dB)
• Insertion Loss ANT 5(dB)
• Output Level ANT 95(dBuV)
• Insertion Loss SAT 5(dB)
• Output Level SAT 85(dBuV)
• Isolation In-In SAT 25(dB)
• Normal Working Voltage 12-20 (V)
• Isolation In-In SAT/ANT 25(dB) DC Power Consumption 50(mA)
• Isolation Between Outputs 25(dB)
• DC Max Power Passing 500(mA)
• Isolation H/V 28(dB)
• Impedance(all ports) 75( )
• Return Loss SAT Inputs 10(dB)
• Switching Voltage : 13/18V

Connectors: "F" type female
